Model/style:
PE series

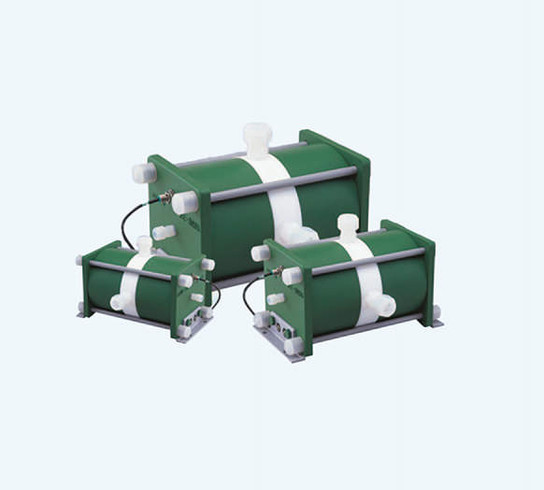

SPELA™ bellows pump
|
Features / Specifications
Model/style
PE series
Type
For chemical supply/circulation
Product information
This pump provides high chemical resistance, heat resistance and cleanliness, because all wetted parts are made of Fluorocarbon polymers.
Pulsation can be reduced by separately installing an accumulator.
Main constituent
materials
Liquid contact part: PFA, PTFE
Main applications
Circulation line for chemical feed unit and cleaning systems
Specifications
<For medium temperatures>
Liquid temperature during operation: 10 to 100°C
(for PE-80MA: 10 to 80°C)
Maximum discharge capacity: 8, 16, 32, 60, 82L/min
Supply air pressure: 0.2 to 0.5 MPaG
<For high temperature>
Liquid temperature during operation: 10 to 180°C
Maximum discharge capacity: 16, 32, 64L/min
Supply air pressure: 0.2 to 0.5 MPaG
※Read the operation manual before use.
Product category
Bellows pumps
